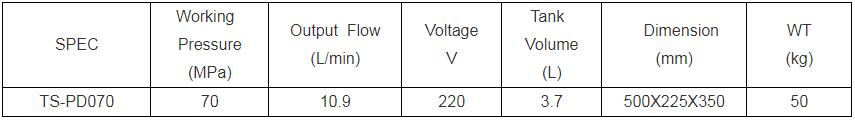

TS-PD070 electric hydraulic pump

1. All aluminum shell, good heat dissipation, light weight

2.  Double stage pump, fast return, high efficiency

3. Remote control operation, equipped with 6 meters standard remote control wire

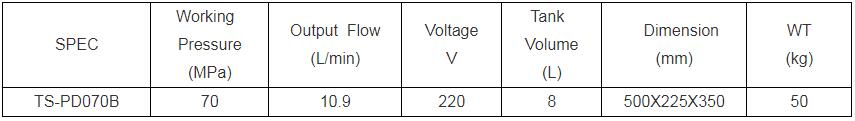

TS-PD070B electric hydraulic pump

1. double stage electric pump, external motor

2. small volume, low noise, built-in motor. There is a quick separation switch.

3. multiple outlet, can drive multiple hydraulic wrenches at the same time

4. remote control operation, equipped with 6 meters standard remote control wire

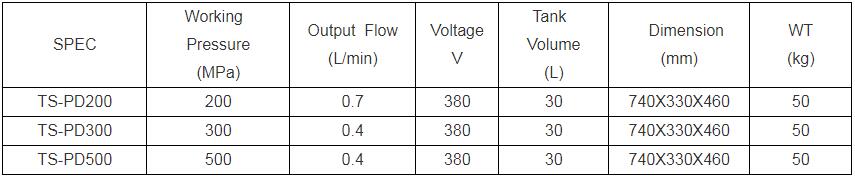

Ultra-high voltage electric hydraulic pump:

The maximum pressure of the ultra-high pressure electric hydraulic pump is up to 500MPa. It can also be directly matched with corresponding machines to push, pull, expand, clamp, bend, lift, squeeze and other operations. It is widely used in shipbuilding, petrochemical, steel mills, power plants, locomotives and military industries.

1.Dual speed design, use gear pump at the first stage,use booster pump at the second stage, shorten the working cycle to improve production efficiency

2. Induction motor with powerful driving force can be started under full load

3.There are three specifications of tank has for choose, can be combined with a variety of hydraulic cylinder

4. The factory wiring of the motor is 380V

5. Two built-in relief valves, one is set before delivery for

overload protection, the other is for customer to adjust the system pressure
